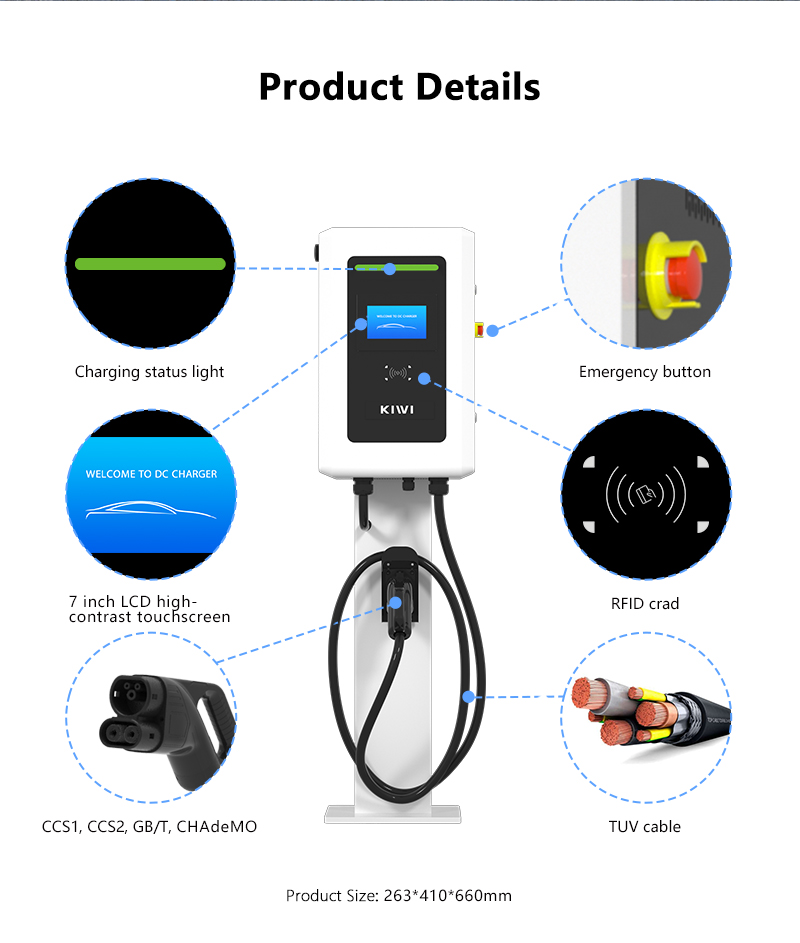

20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A

Name: 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GBT CHAdeMO 130A
Brand: KIWI
Price: 2 USD

Quality 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A for sale

Place of Origin : Guangdong, China

Model Number : F5-DC1000V-20kW 30kW 40kW/A

Brand Name : KIWI

MOQ : 2

Price : $2,550-4,250

Interface Standard : CCS1 CCS2 GB/T CHAdeMO

Output Current : DC0-130A

Output Power : 20kW 30kW 40kW

Input Voltage : 380V

Input Current : AC 0A~65A

IP Protection : IP55

Output Voltage : DC 200V~1000V

RS485 : Point to Point communication

Cooling Method : Intelligent air cooling

Grid Frequency : 50Hz /60Hz

DC Output Voltage : 150-1000VDC

Cable Length : 5M or Customized

User Interface : 7 inch LCD touchscreen

Operating Temperature : -20 °C to 55 °C

Dimensions : 263*410*660mm

Net Weight : ≤48kg

Contact Now

20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A

MODEL	kW-20S	kW-30S	kW-40S
AC Input Power	40A, 400V	60A, 400V	80A, 400V
Input type	3P + N + PE
Input Voltage Range	AC380V~400V
Input Frequency	50Hz /60Hz
THD	≤5%
DC Output Power Rating (MAX)	20kW	30kW	40kW
DC Output Voltage	150-1000VDC
Cable Length	5M or Customized
Cellular Communication	GSM, 4G, LTE
Connectivity	Internet access via 4G/3G/Ethernet (RJ45)
User Authentication	App operation and RFID
User Interface	7 inch LCD high-contrast touchscreen
Communiation Protocols	Proprietary and OCPP 1.6J/2.0
Language System	English, Chinese or Customized
Protection Rating	IP55 and IK10 (cabinet) / IK08 (touchscreen)
Operating Temperature	- 20 °C to 55 °C
Storage Temperature	-40 °C to 70 °C
Humidity	< 95%, non-condensing
Mounting	Wall-mount/Floor stand installation
Dimensions (mm)	263410660mm
Net Weight (kg)	≤48kg

FQA

Q: How is your electric vehicle charging station after-sale service?

A:1/We will build a whatsapp/skype/wechat service group with technical engineers and company leader if need;
2/We provide 24/7 online service,so you're welcome to contact us any time you need;
3/Will change the part for free during warranty if non-human damage,for other problems,we'd like to supply customer the part at original cost.

Q: How is your payment method?
A: Same as other ev charging stations suppliers,normally 30%-50% deposit and balance paid off before shipment,

special requirement customer please contact us for further discussion.

Q: How long is your normal delivery time?
A: 1/For stock ev charger,can arrange the shipment immediately after you confirm the order;
2/For custom AC ev charger less than 100pcs,normally 7-15 days;
3/For custom DC ev charger less than 100pcs,normally 15-25 days;

Q: Can I use my own card or app at your electric car charging stations?
A: Normally the RFID card and app have to identify our electric charger,so we will provide you 3 free RFID card for each
charger.

Q:Will your electric car charger charging slower in winter?
A:The electric charging station may need a little longer warm up time before normal run,but this is very small change,it won't influence the output power,so we can ignore this influence.

Q:Can you provide a video how to install the electric vehicle charger?
A:Yes we have the installation guide video,it's very easy and anyone who know a little about electricity safety can finish this work,we will also be ready online to help your any possible question.

Q:How can I become your exclusive agency?
A:Only if you have this interest,you can be our agent if we don't have exclusive agent in your market.
if you want to be exclusive agent,we will have an annual sales amount target requirement,welcome to further discuss about more details,we're open to any constructive advice.
